Category: Fieldbus

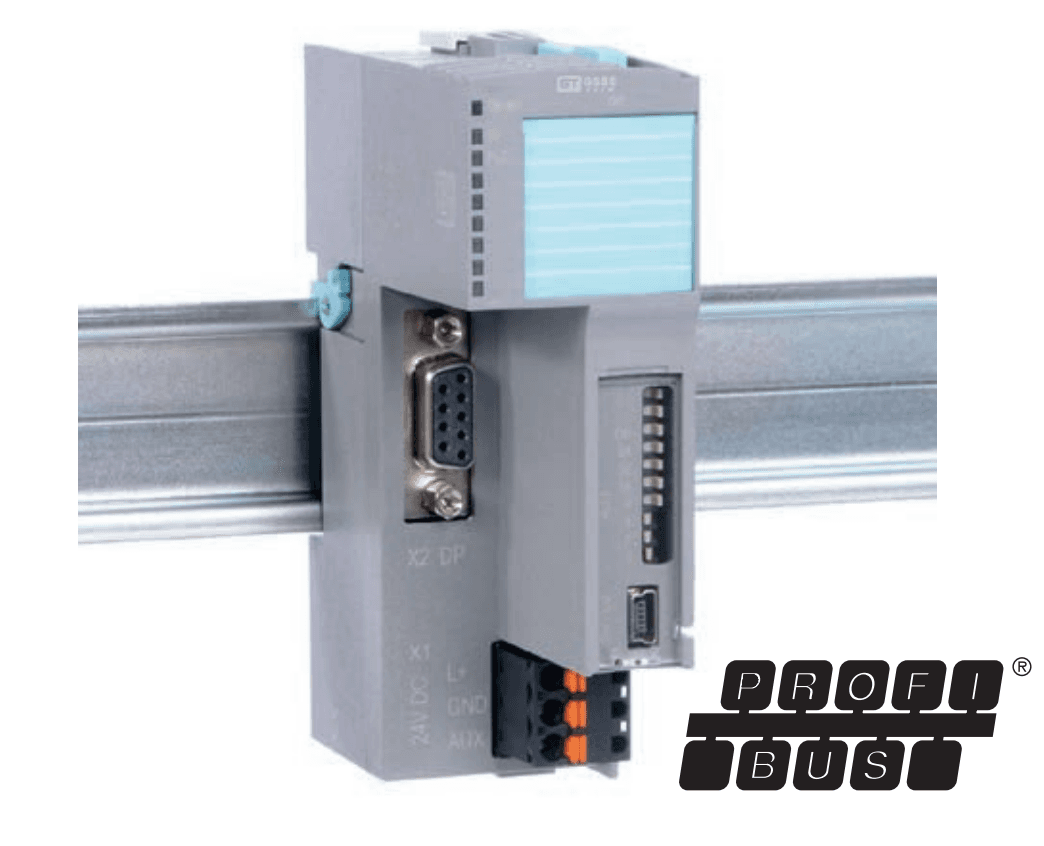

- PROFIBUS DP slave as defined in EN 50170/iec 61158
- Supports all PROFIBUS baud rates
- DP-V0 and DP-V1 support
- Modules can be replaced during operation (hot-plug)
- Up to 244 bytes of input data and 244 bytes of output data
- One class 1 master connection with 240 bytes of payload data
- Up to three class 2 master connections with 240 bytes of payload data (as a DP-V1 slave)
- Bit packing for 2-bit and 4-bit modules
- Integrated power supply unit for powering peripheral modules (2.5 A)
- DIP switch for setting the PROFIBUS address; can be covered 3 LEDs, two of them bi-color
- USB device port for online diagnostics, configuring parameters, setup, and firmware updates wirh “GBS20 ToolBox”
- GBS20 ToolBox simulation for setting up the I/O system without a higher-level controller in order to test the system's operation (I/O check)
